Understand Azure Role Based Access Control (RBAC)

What is RBAC?

When it comes to identity and access, most organizations that are considering using the public cloud are concerned about two things:

  1. Ensuring that when people leave the organization, they lose access to resources in the cloud.
  2. Striking the right balance between autonomy and central governance – for example, giving project teams the ability to create and manage virtual machines in the cloud while centrally controlling the networks those VMs use to communicate with other resources.

Azure Active Directory (Azure AD) and Role-Based Access Control (RBAC) work together to make it simple to carry out these goals.

Azure subscriptions

First, remember that each Azure subscription is associated with a single Azure AD directory. Users, groups, and applications in that directory can manage resources in the Azure subscription. The subscriptions use Azure AD for single sign-on (SSO) and access management. You can extend your on-premises Active Directory to the cloud by using Azure AD Connect. This feature allows your employees to manage their Azure subscriptions by using their existing work identities. When you disable an on-premises Active Directory account, it automatically loses access to all Azure subscriptions connected with Azure AD.

What is RBAC?

Role-based access control (RBAC) is an authorization system built on Azure Resource Manager that provides fine-grained access management of resources in Azure. With RBAC, you can grant the exact access that users need to do their jobs. For example, you can use RBAC to let one employee manage virtual machines in a subscription while another manages SQL databases within the same subscription.

What is role-based access control?

You grant access by assigning the appropriate RBAC role to users, groups, and applications at a certain scope. The scope of a role assignment can be a subscription, a resource group, or a single resource. A role assigned at a parent scope also grants access to the child scopes contained within it. For example, a user with access to a resource group can manage all the resources it contains, like websites, virtual machines, and subnets. The RBAC role that you assign dictates what resources the user, group, or application can manage within that scope.

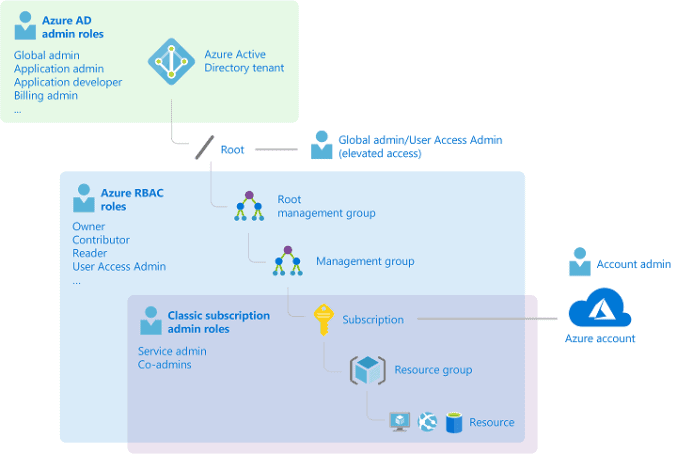

The following diagram depicts how the classic subscription administrator roles, RBAC roles, and Azure AD administrator roles are related at a high level. Roles assigned at a higher scope, like an entire subscription, are inherited by child scopes, like service instances.

In the preceding diagram, a subscription is associated with only one Azure AD tenant. Also note that a resource group can have multiple resources but is associated with only one subscription. Although it’s not obvious from the diagram, a resource can be bound to only one resource group.

What can I do with RBAC?

RBAC allows you to grant access to Azure resources that you control. Suppose you need to manage access to resources in Azure for the development, engineering, and marketing teams. You’ve started to receive access requests, and you need to quickly learn how access management works for Azure resources.

Here are some scenarios you can implement with RBAC.

  • Allow one user to manage virtual machines in a subscription and another user to manage virtual networks
  • Allow a database administrator group to manage SQL databases in a subscription
  • Allow a user to manage all resources in a resource group, such as virtual machines, websites, and subnets
  • Allow an application to access all resources in a resource group

RBAC in the Azure portal

In several areas in the Azure portal, you’ll see a pane named Access control (IAM), also known as identity and access management. On this pane, you can see who has access to that area and their role. Using this same pane, you can grant or remove access.

The following shows an example of the Access control (IAM) pane for a resource group. In this example, Alain Charon has been assigned the Backup Operator role for this resource group.

How does RBAC work?

You control access to resources using RBAC by creating role assignments, which control how permissions are enforced. To create a role assignment, you need three elements: a security principal, a role definition, and a scope. You can think of these elements as “who”, “what”, and “where”.

1. Security principal (who)

security principal is just a fancy name for a user, group, or application that you want to grant access to.

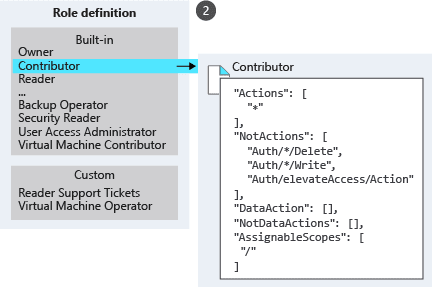

2. Role definition (what you can do)

role definition is a collection of permissions. It’s sometimes just called a role. A role definition lists the permissions that can be performed, such as read, write, and delete. Roles can be high-level, like Owner, or specific, like Virtual Machine Contributor.

Azure includes several built-in roles that you can use. The following lists four fundamental built-in roles:

  • Owner – Has full access to all resources, including the right to delegate access to others.
  • Contributor – Can create and manage all types of Azure resources, but can’t grant access to others.
  • Reader – Can view existing Azure resources.
  • User Access Administrator – Lets you manage user access to Azure resources.

If the built-in roles don’t meet the specific needs of your organization, you can create your own custom roles.

3. Scope (where)

Scope is where the access applies to. This is helpful if you want to make someone a Website Contributor, but only for one resource group.

In Azure, you can specify a scope at multiple levels: management group, subscription, resource group, or resource. Scopes are structured in a parent-child relationship. When you grant access at a parent scope, those permissions are inherited by the child scopes. For example, if you assign the Contributor role to a group at the subscription scope, that role is inherited by all resource groups and resources in the subscription.

Role assignment

Once you have determined the who, what, and where, you can combine those elements to grant access. A role assignment is the process of binding a role to a security principal at a particular scope, for the purpose of granting access. To grant access, you create a role assignment. To revoke access, you remove a role assignment.

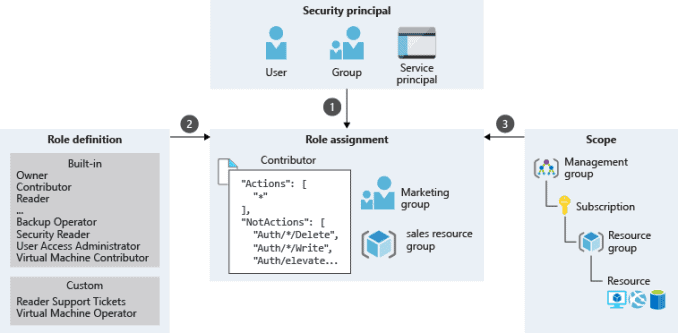

The following example shows how the Marketing group has been assigned the Contributor role at the sales resource group scope.

RBAC is an allow model

RBAC is an allow model. What this means is that when you are assigned a role, RBAC allows you to perform certain actions, such as read, write, or delete. So, if one role assignment grants you read permissions to a resource group and a different role assignment grants you write permissions to the same resource group, you will have read and write permissions on that resource group.

RBAC has something called NotActions permissions. Use NotActions to create a set of allowed permissions. The access granted by a role, the effective permissions, is computed by subtracting the NotActions operations from the Actions operations. For example, the Contributor role has both Actions and NotActions. The wildcard (*) in Actions indicates that it can perform all operations on the control plane. Then you subtract the following operations in NotActions to compute the effective permissions:

  • Delete roles and role assignments
  • Create roles and role assignments
  • Grants the caller User Access Administrator access at the tenant scope
  • Create or update any blueprint artifacts
  • Delete any blueprint artifacts
